TS-13.5/EB accelerator tube is an S-band 13.5MeV electron linear accelerator developed and produced by Yikang Company. It adopts a traveling wave acceleration structure and can be adapted to high-energy irradiation electron linear accelerators. The product supports structural customization and optional focusing coils.
TS-13.5/EB | |||
Electron Beam Energy （MeV） |

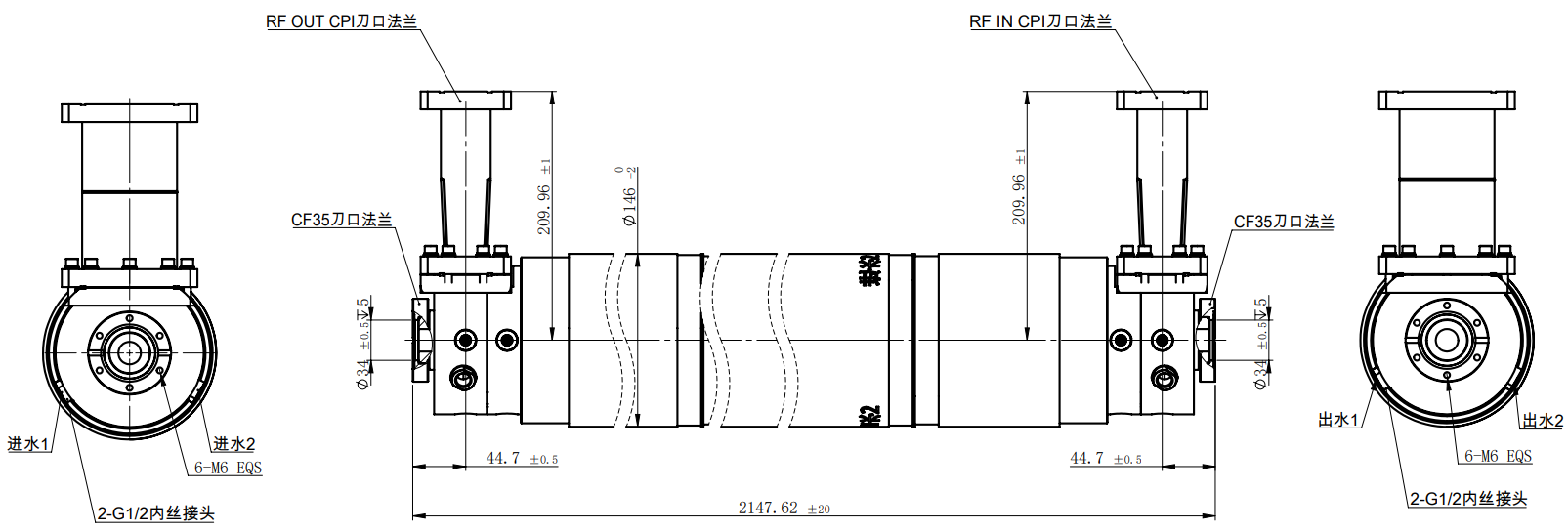

| Overall Length（mm） | ≤2148±20 |
Input Power(MW/kW) | 5MW/45 kW | Diameter（mm） |
|
| Output Pulse（mA) | ≥190 | Pulse Width（μs） | ≥18 |
Operation Frequency（MHz） | 2856±1 | Frequency Repetition（MHz） | 10-500 |
E-gun Voltage（kV） | 50±5 | Power Conversion Efficiency（%） | ≥50 |
Focal Spot Size（mm） | Φ 20 | ||
