RX-6/1000

RX-6/1000

RX-6/1000 is an X-band RF electron linear accelerator tube independently developed by Elekom. It adopts a ring coupled accelerating structure, which can be used in radiotherapy field.

  • Product Introduction

Technical Parameter

RX-6/1000

Electron Beam Energy(MeV)

6

Pulse Width(μs)

2.5-4.2

Dose Rate(cGy/min·m)

≥1000@800mm

Duty Cycle(‰)

0.8

Dose Rate Instability(%)

≤1

Ion Pump Voltage(kV)

3.5-4.5

Operation Frequency(MHz)

9300±3

Cooling  Water  Temperature(℃)

25-40

E-gun Voltage(kV)

8-15

Filament Current(A)

1.55±0.1

Focal Spot Size(mm)

≤2

Heating Time Of Filament(min)

≥3

Overall Length(mm)

≤560

Reserved Target Current Measuring Interface

Optional

Magnetron Power(MW)

2

RF Window Flange

FBP 84(TYP)

Input  Power Of Accelerating Tube(MW)

≥1.7

Mounting Flange

Optional

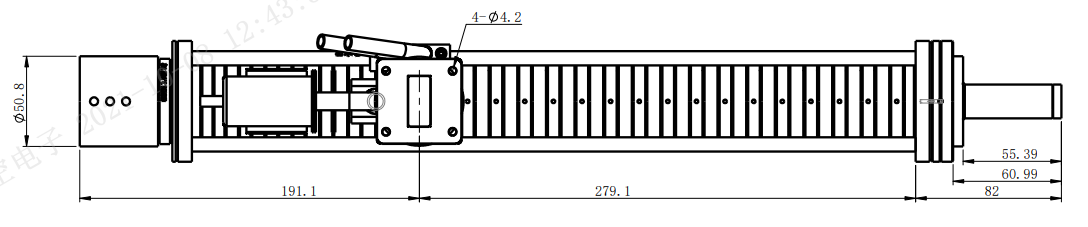

Overall Dimension
