EX-2/40 is an X-band RF electron linear accelerator tube independently developed by Elekom, which adopts an electric coupling acceleration structure. It has the advantages of small size, small focus and stable performance, which can be used in industrial detection and security inspection.
EX-2/40 | |||
Electron Beam Energy（MeV） | 2 | Pulse Width（μs） | 2.5-4.2 |
Dose Rate（cGy/min·m） | ≥40 | Duty Cycle（‰） | 0.8 |
Dose Rate Instability（％） | ≤2 | Ion Pump Voltage（kV） | 3.5-4.5 |
Operation Frequency（MHz） | 9300±3 | Cooling Water Temperature（℃） | 25-40 |
E-gun Voltage（kV） | 8-15 | Filament Current（A） | 2.2±0.2 |
Focal Spot Size（mm） | ≤1.5 | Heating Time Of Filament（min） | ≥3 |

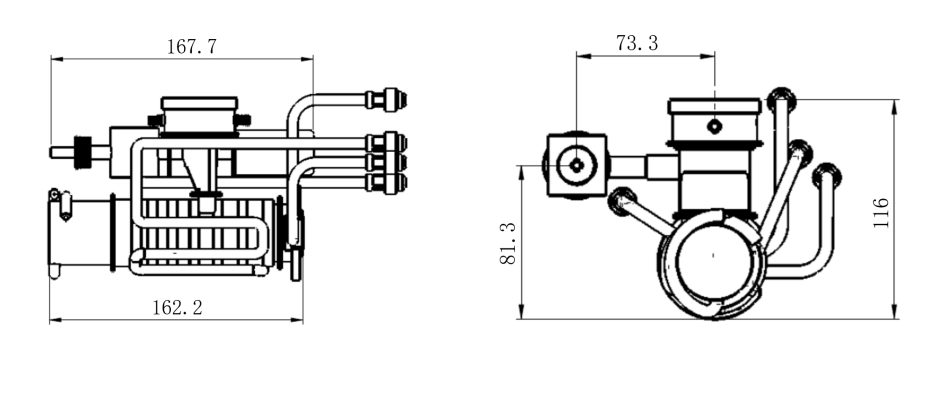

Overall Length（mm） | ≤170 | Reserved Target Current Measuring Interface | Optional |
Magnetron Power（MW） | 1 | RF Window Flange | FBP 84（TYP） |
Input Power Of Accelerating Tube（MW） | ≥0.9 | Mounting Flange | Optional |
